Our Achievements / Milestones

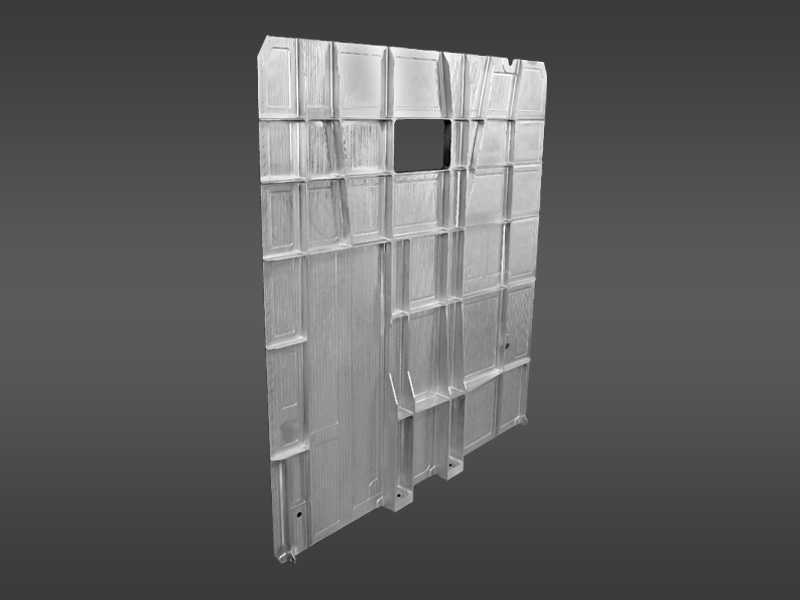

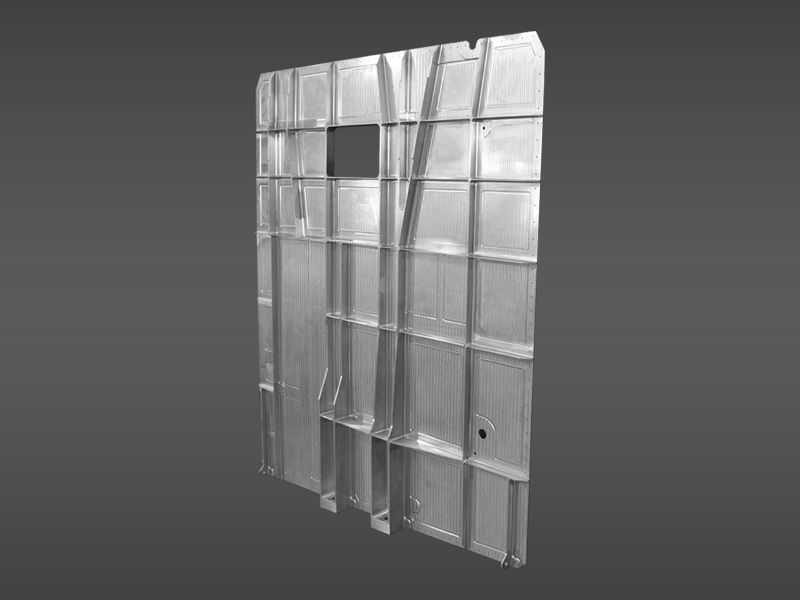

Part Name : BEAM, STA 534.19, LBL 8.0, AFT PYLON

Project : Chinook-Pylon Assembly

Size : 1250mm Length, 1100mm Width, 57.15mm thickness

Criticality : Base thickness 1.2 mm

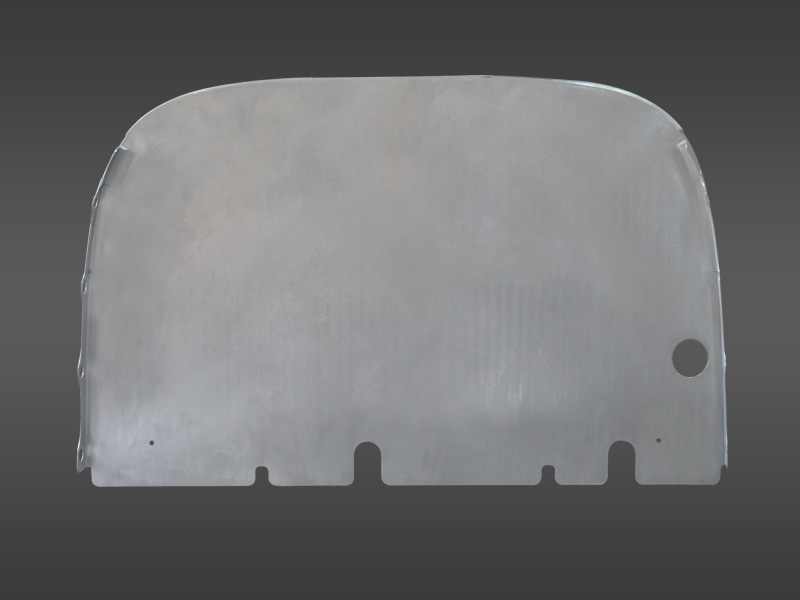

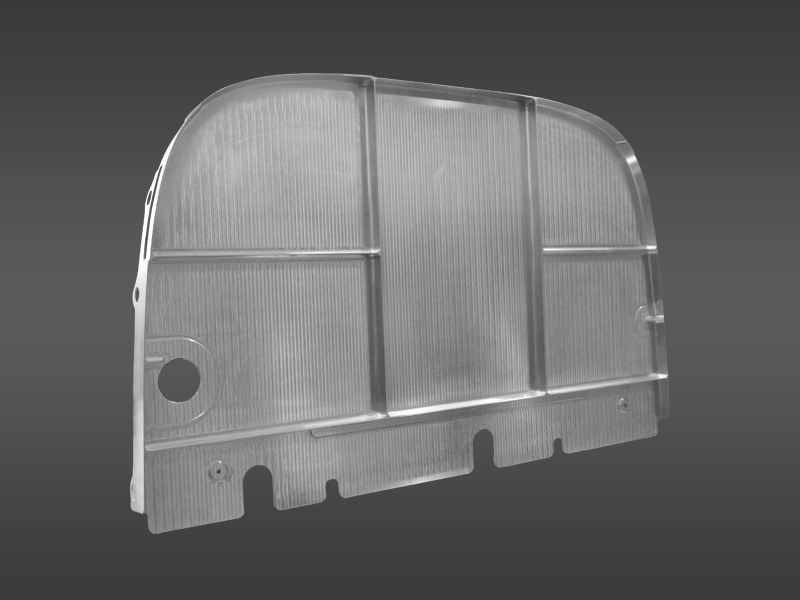

Part Name : MACHINED FORMER,STA534,FWD CROWN,AFT PYLON

Project : Chinook-Pylon

Size : 937mm Length, 591.4mm Width, 48mm thickness

Criticality : 1.2mm Sheet metal part converted into machined part

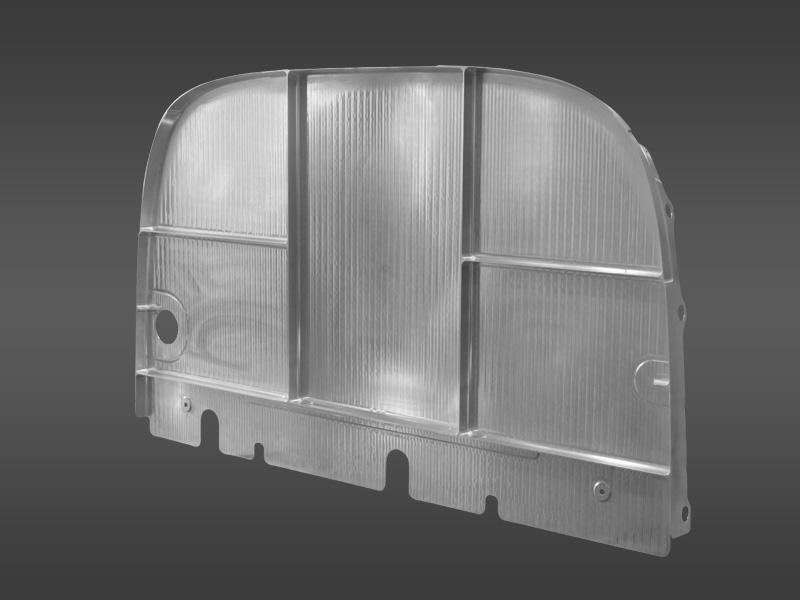

Part Name : MACHINED AIR DAM, STA521, FWD CROWN, AFT PYLON

Project : Pylon and Ramp

Size : 958mm Length, 908mm Width, 19.1mm thickness

Criticality : Base wall thickness 1.0mm

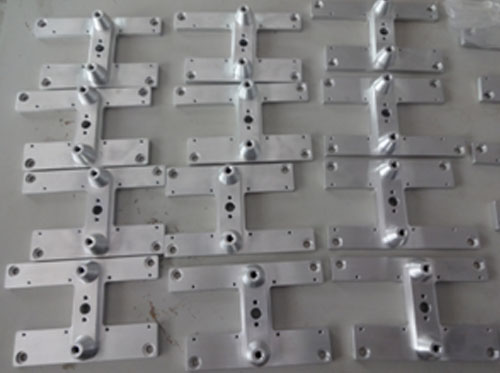

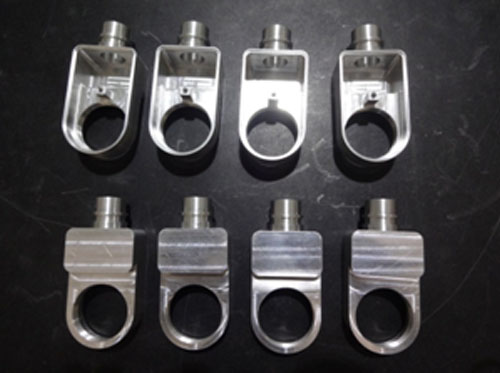

Part Name : BOEING F18 PARTS

Project : F-18 and F-15 Boeing

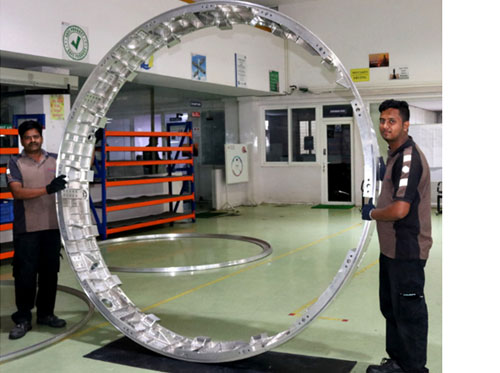

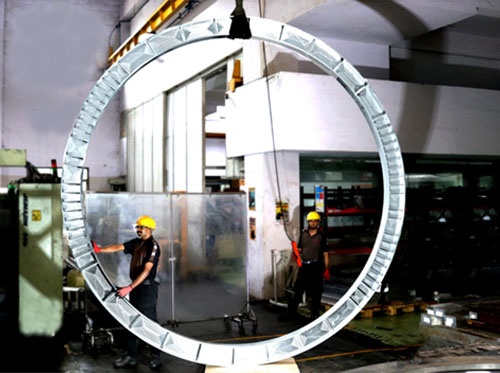

Part Name: BULK HEAD-1A

Project : LV M3

Size : 3994mm Outer Diameter, 3544mm Inner Diameter, 130mm Height

Criticality : 4mtrs Ring With pockets from both sides

Part Name: CANOPY LONGERON

Project : LCA Tejas-SP

Size : 4247.5mm Length, 194mm Width, 80.9mm thickness

Criticality : 4 mtrs part with complete 5axis machining

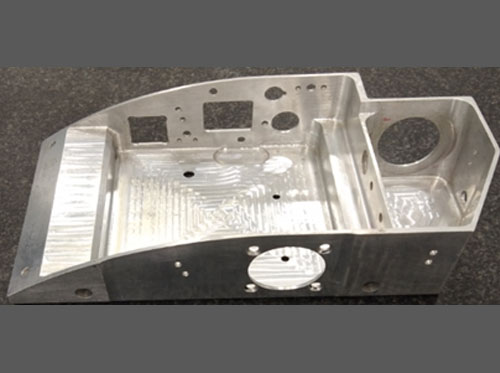

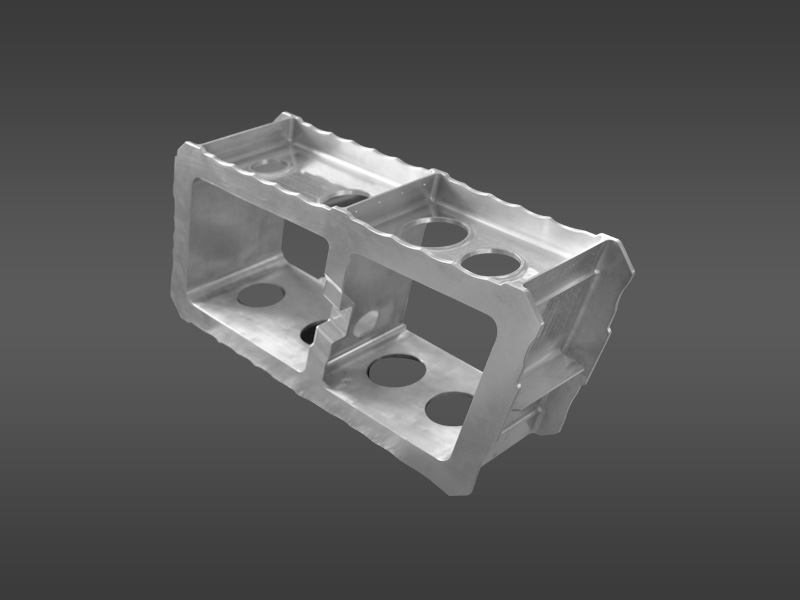

Part Name: DRY BAY BRACKET (IN-BOARD)

Project : LCA Tejas

Size : 657mm Length, 280mm Width, 164mm thickness

Criticality : All 6 sides of part is with contour surface

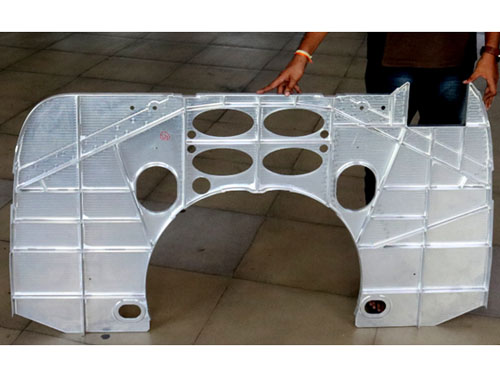

Part Name: FRAME STA #25

Project : LCA AC

Size : 1705mm Length, 877.2mm Width, 30mm thickness

Criticality : Base thickness 1.5mm all over

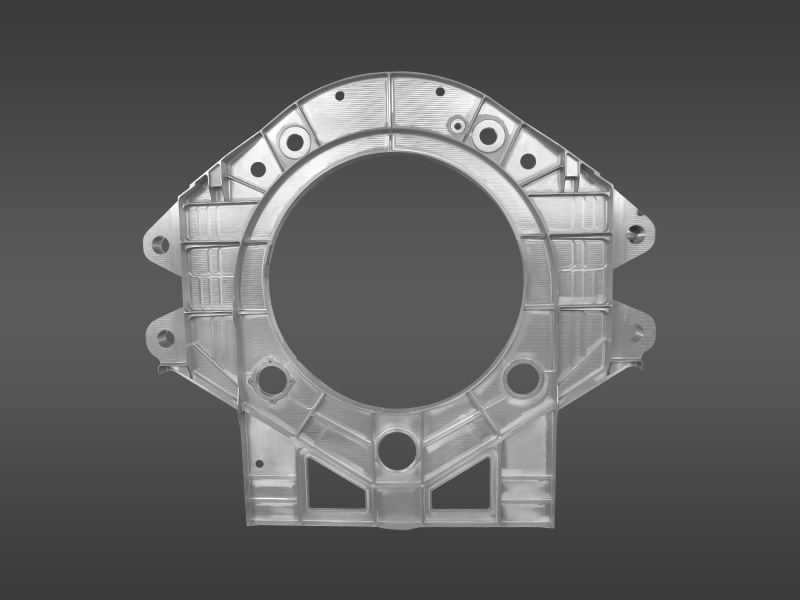

Part Name: FRAME STA #26

Project : LCA Tejas

Size : 1664mm Length, 1810mm Width, 107mm thickness

Criticality : Closed tolerance bores with positional Accuracy

Part Name: BULK'D FRAME STA #30

Project : LCA Tejas

Size : 1549mm Length, 1383mm Width, 110mm thickness

Criticality : H7 bores with close position tolerance Complete 5 axis machining

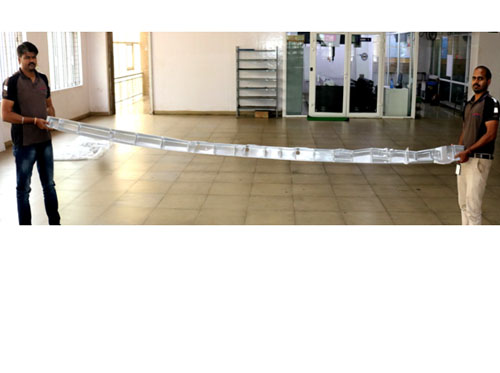

Part Name: FRONT SPAR WING

Project : LCA Tejas-SP

Size : 5500mm Length, 145mm Width, 54mm thickness

Criticality : 6mtr length part with critical H7 holes to be done by right angle head

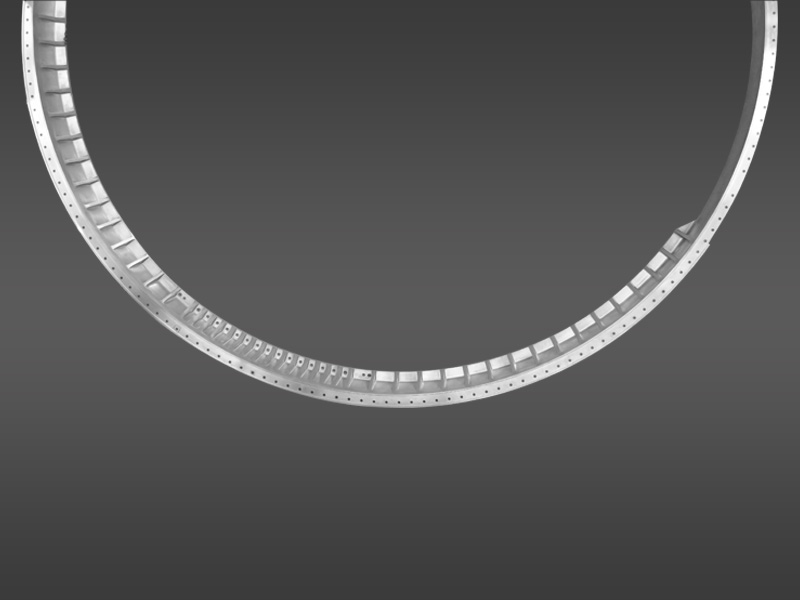

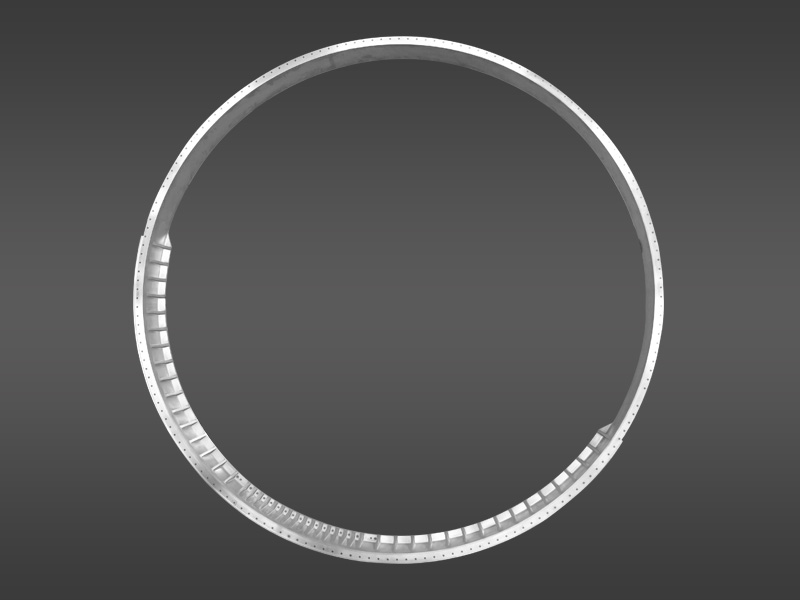

Part Name: NCA-V2 AFT END RING

Project : GSLV MKIII (NCA-V2)

Size : 3300mm Outer Diameter, 3060mm Inner Diameter, 246mm Height

Criticality : Complete 5axis machining on OD and ID, with Closed tolerance

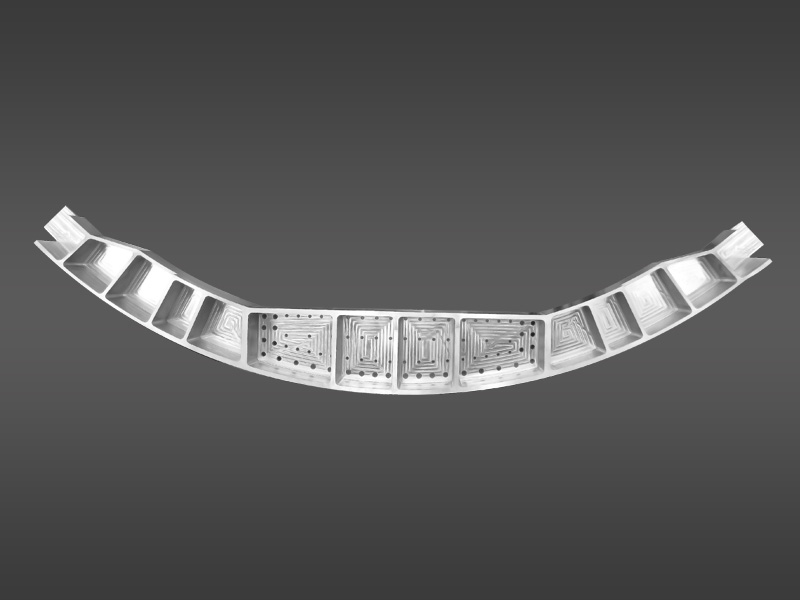

Part Name: NCA V6 BULK HEAD

Project : GSLV MKIII (NCA-V2)

Size : 2185mm Length, 243mm Width, 170mm thickness

Criticality : 4 segments machined from single ring to save the raw material.

Part Name: CARGO RAMP

Project : Chinook-Ramp

Size : 1075mm Length, 465mm Width, 51mm thickness

Criticality : Base thickness 1.2mm,

Part Name: PL HOUSING AIR MACHINING

Project : DRDL

Size : 2475mm Outer Diameter, 2258mm Inner Diameter, 319.5mm Height

Criticality : Critical Profile and pocket machining

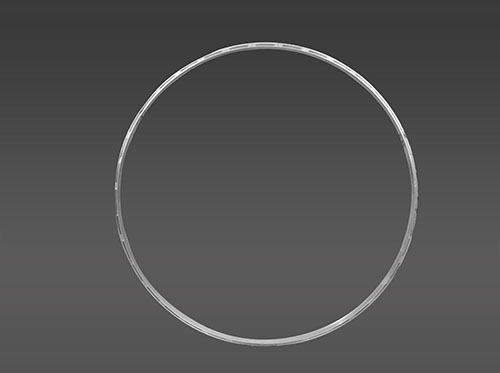

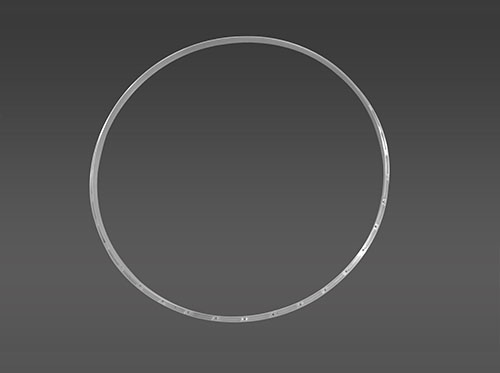

Part Name: PLV V6 FORE END RING

Project : PSLV (PLA-V6)

Size : 1226mm Outer Diameter, 1123mm Inner Diameter, 72mm Height

Criticality : Critical turning Profiles with angular groove machining with close tolerance

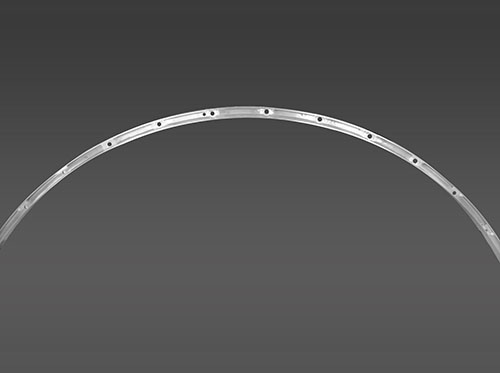

Part Name: PLV V6 AFT END RING

Project : PSLV (PLA-V6)

Size : 1392.5mm Outer Diameter, 1345.4mm Inner Diameter, 47.2mm Height

Criticality : Critical turning Profiles with angular groove machining with close tolerance

Part Name: RAFALE PARTS

Project : Rafael Israel

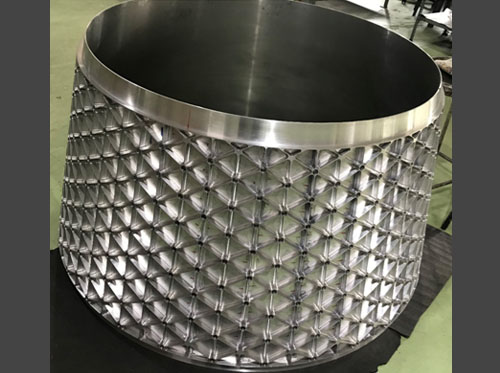

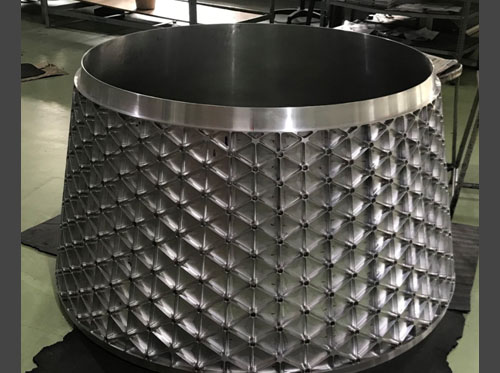

Part Name: RECESS CONE SUB ASSY MACHINING

Project : LPSC

Size : 1533.4mm Outer Diameter, 1502.4mm Inner Diameter, 775mm Height

Criticality : 1.5 mtr cone with honeycomb pockets on OD Base thickness 1.3mm

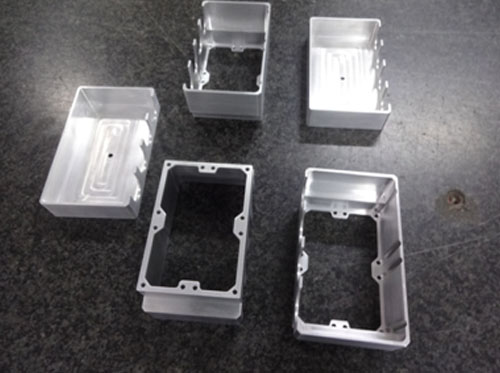

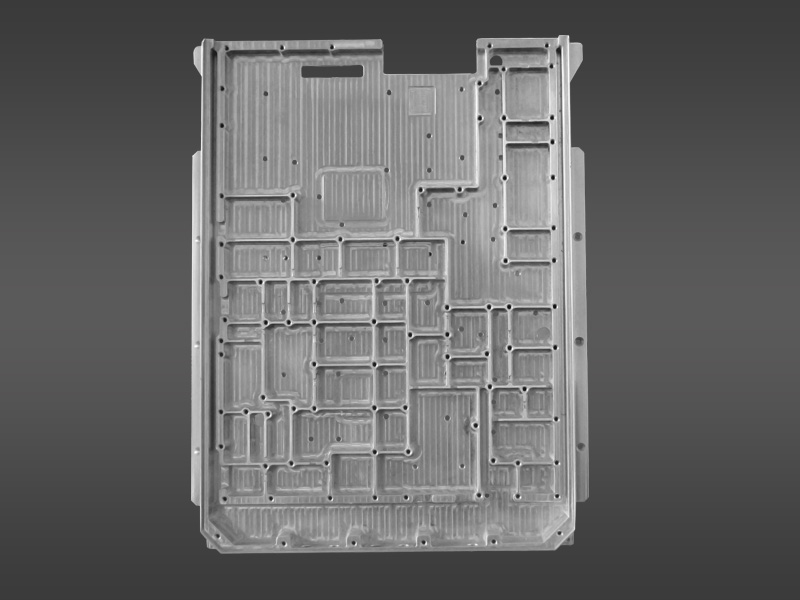

Part Name: RUGGEDIZER

Project : Samyuktha Antenna
