List Of Machines / Equipments
Machine Name : JOBS JOMACH 146
Machine Type : Gantry 5 axis machining center
Make : JOBS SPA Italy
Controller: FIDIA M20
Rpm: 16000
Size: 'X' axis 6200mm / 'Y' axis 3200mm/'Z' axis 2000mm/ 'A' ±95deg / 'C' axis ±220deg

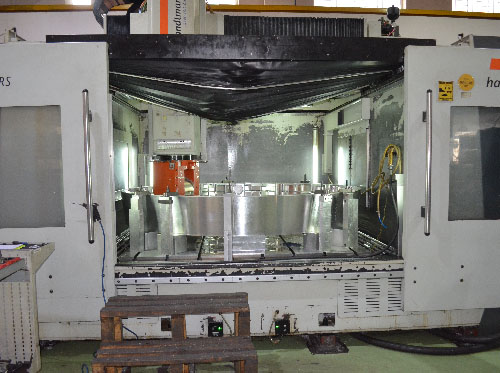

Machine Name : HANDTMANN GANTRY RS 250/200
Machine Type : Gantry 5 axis machining center
Make : Handtmann Germany
Controller : FIDIA C20
Rpm : 24000
Size : 'X' axis 2500mm / 'Y' axis 2000mm/'Z' axis 800mm/ 'A' axis +130deg to -5deg/ 'C' axis ±220deg
Machine Name : DECKAL MAHO DMU 100 mono block
Machine Type : 5 axis machining center
Make : DMG Germany
Controller : Heidenhain I TNC 530
Rpm : 12000
Size : 'X' axis 1250mm / 'Y' axis 800mm/'Z' axis 700mm/ 'B' axis +30deg to -120deg/'C' axis ±360deg

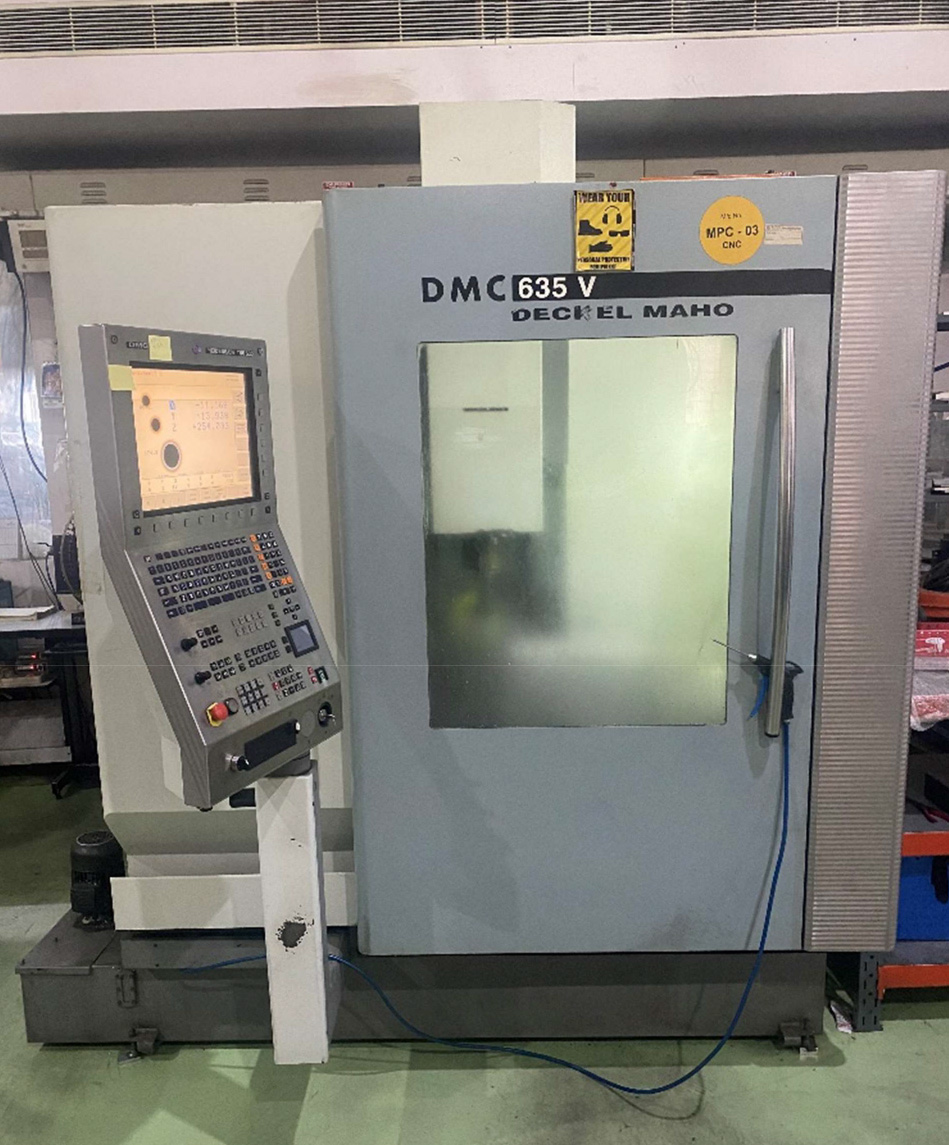

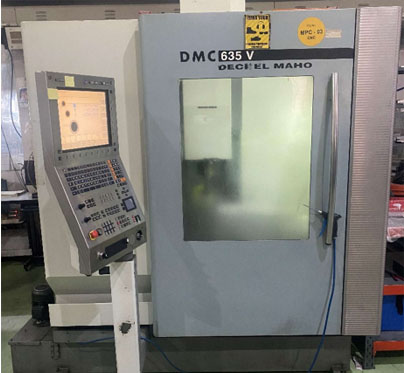

Machine Name : DECKAL MAHO DMC635V
Machine Type : Vertical machining center
Make : DMG Germany
Controller : Heidenhain I TNC 530
Rpm : 8000
Size : : 'X' axis 635mm / 'Y' axis 510mm/'Z' axis 500mm

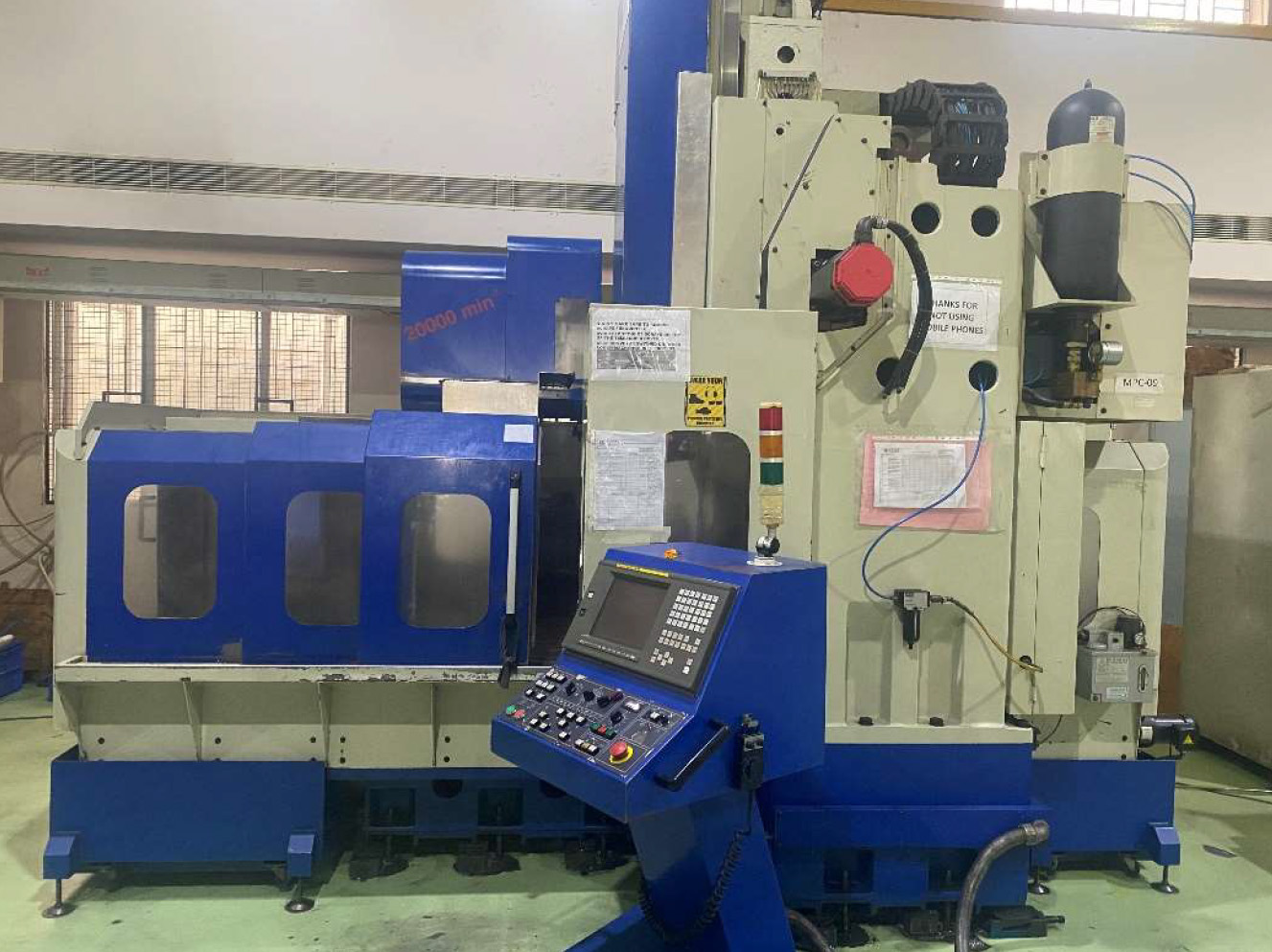

Machine Name : JHONFORD MATRA DMC-1200
Machine Type : Vertical machining center
Make : JHONFORD Taiwan
Controller : FANUC 18M
Rpm : 8000
Size : : 'X' axis 1200mm / 'Y' axis 850mm/'Z' axis 800mm

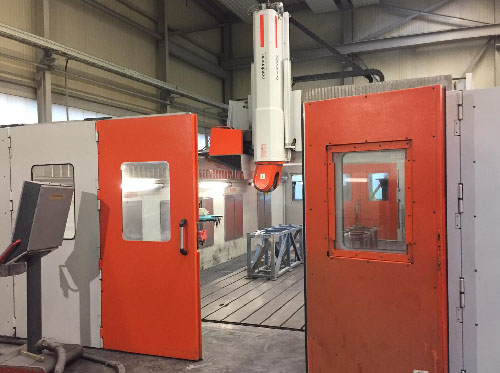

Machine Name : HANDTMANN UBZ NT 500/300
Machine Type : Gantry 5 axis machining center
Make : Handtmann Germany
Controller : FIDIA C20
Rpm : HSK A100 :- 10000RPM
HSK A63 :- 20000 RPM
Size : 'X' axis 5500mm / 'Y' axis 3200mm/'Z' axis 1500mm/ 'A' axis +95deg to - 120deg/ 'C' axis ±270deg

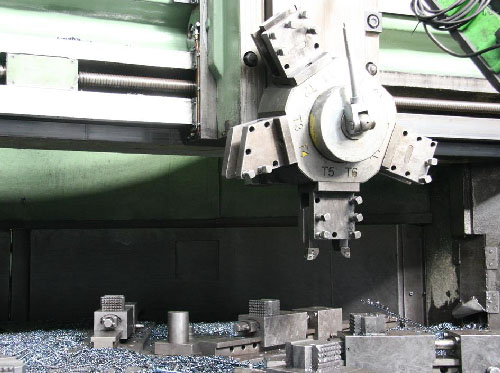

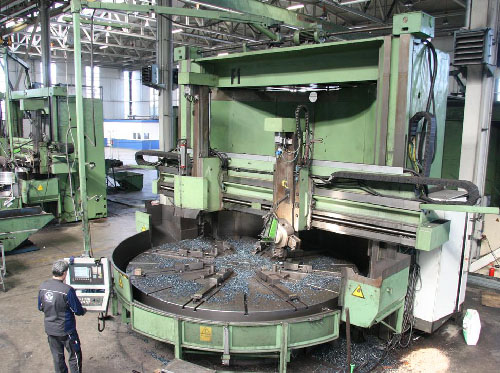

Machine Name : TITAN SC 43
Machine Type : Double column VTL
Make : Titan Romania
Controller : Siemens 840D
Specification
Table Dia : 4mtrs
Swing Dia 4.3 mtrs
RPM : 60
Turning Height 2 mtrs
Twin turrets
